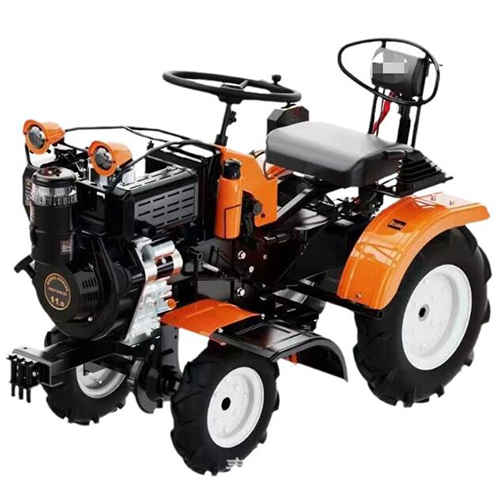

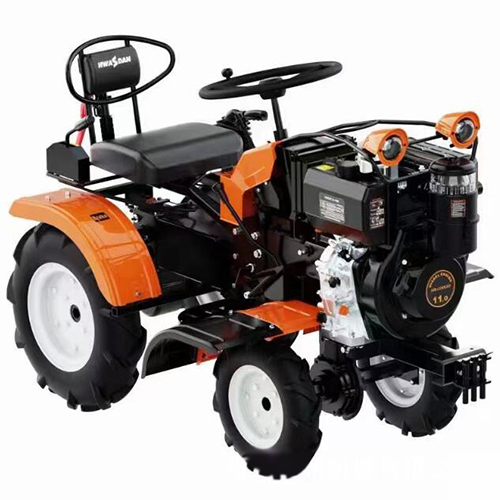

Riding Type Rotary Tiller

Tilling width ( mm)

1560

Tilling depth ( mm)

300~420

Drive mode

Gear driven

Gear and speeds Front 2F+1R,   rear 4F+2R

Gears

Front: - 1, 0-, 1, 2; Rear:   - 1, -2, 0 , 1, 2, 3, 4

Synchronized gears

- 1, 1, 2

Travel speed (m/min)

Gear 1

25.9

Gear 2

59

Gear 3

105

Gear 4

193.4

Gear - 1

20. 1

Gear -2

81

Snychronized gears Front   4F+2R, rear 8F+4R

Gears

Front: - 1, 0-, 1, 2, 3, 4;   Rear: - 1, -2, -3, -4, 0 , 1, 2, 3, 4, 5, 6, 7, 8

Synchronized gears

-1, 1, 2, 3, 4

Starting system

Recoil start / Electric   start (2 0 Ah battery)

Turning system

Waist turning

Wheels

Front 4.00-8, rear 6.00- 12   high quality rubber wheel

Brake System

No

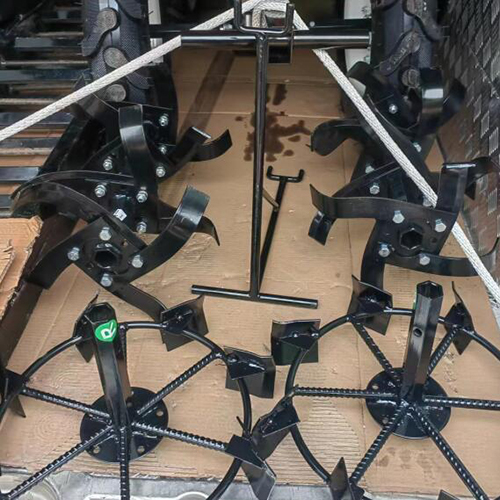

Standard blades

4 pcs * 5 groups dry land   blades with side discs

Engine

Fuel type

Diesel / Petrol

Engine model

Diesel 188FE( 13hp) / Petrol   192FE( 18hp)

Working efficiency

≧0.04hm/( h*m)

Fuel Consumption

≦30kg/h㎡

Others

Packing dimensions

Front 2F+1R Rear 4F+2R

1250 × 740 × 800 (with one   forklift pallet, engine packed separately)

Front 4F+2R Rear 8F+4R

1385 × 750 × 900 (with one   forklift pallet, engine packed separately)

N.W/G.W (kg)

Front 2F+1R Rear 4F+2R

260/290

Front 4F+2R Rear 8F+4R

285/315

Container Loading Qty. (   pcs)

30 sets / 20GP; 70 sets /   40HQ

Warranty

1 year
