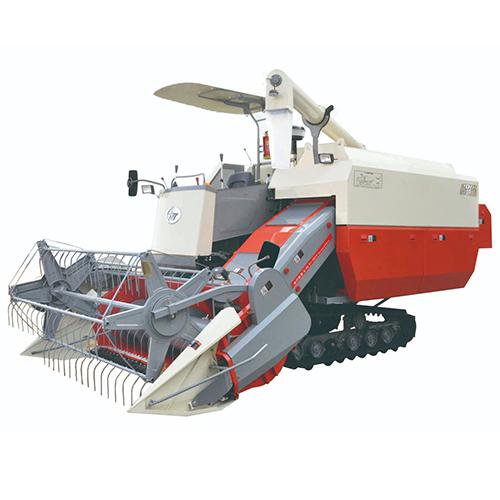

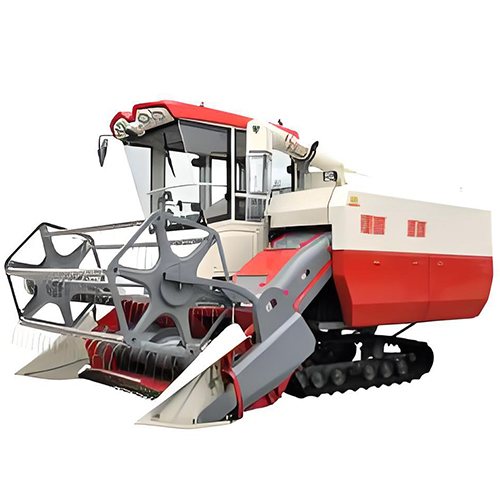

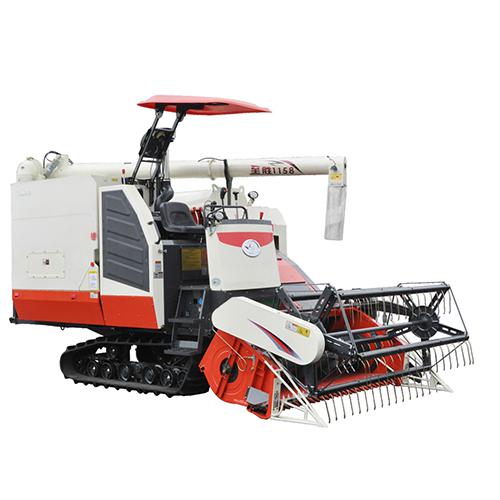

Combine Harvester 4LZ-6.0

No.

/Item

/Unit

Specification

1

Product model

/

4LZ-6.0Z

2

Structure Type

/

Full-Feed Track Self-propelled Type

3

Engine Rated Power

KW

75

4

Overall Dimension    (L×W×H)

mm

5200x2800x2960

5

Complete Machine Weight

kg

3650

6

Cutting Width

mm

2200

7

Feeding Capacity

Kg/s

6.0

8

Min. Ground Clearance

mm

330

9

Theoretical Running Speed

km/h

0～9.04

10

Working Productivity

hm2/h

0.4～0.65

11

Oil Consumption

kg/hm

≤32

12

Header Auger Type

/

Retractable Horizontal Transfer

13

Reel

/

Eccentric Reel Teeth

14

Concave Type

/

Grid

15

Gauge

mm

1250

16

Track Specification

( Pitch x Number x Width )

/

90mm×53× 500mm

17

Gearbox Type

/

LQ85 Gearbox + 45 cc HST

18

Grain Tank Volume

m3

1.4

19

Grain Unloading Type

/

High positioned unloading
